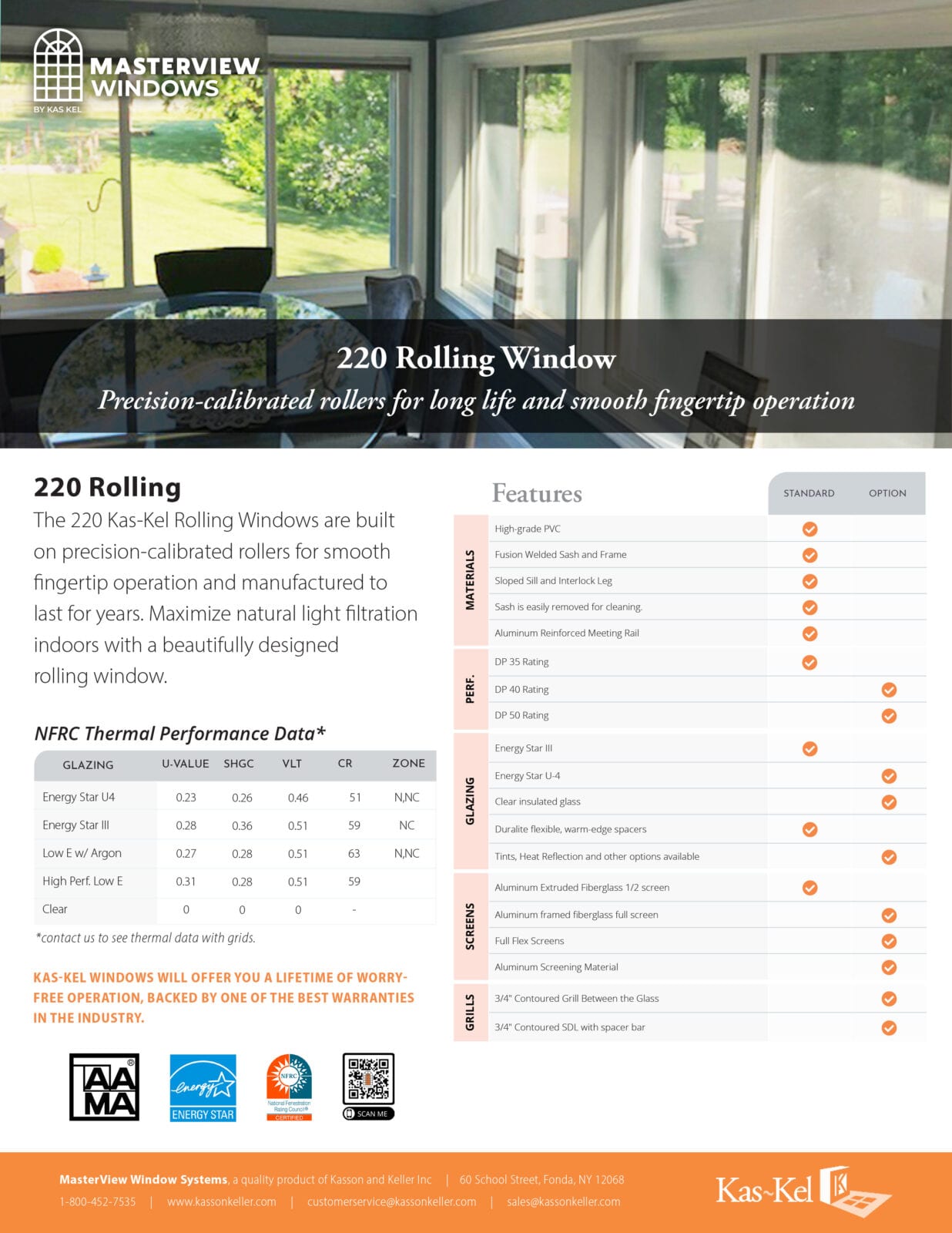

220 Rolling Window

New Construction

precision-calibrated rollers for long life and smooth fingertip operation

220 Rolling



Masterview Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation. Sash is easily removed for cleaning.



All sashes tilt in from the bottom.

Horizontal views
and maximum daylighting



Rolling windows make the most of a horizontal view while allowing for ventilation through a single or multiple sashes depending on the configuration. Maximize natural light filtration indoors with a rolling window.



Also called sliding windows, the rolling window involves at least two sashes side by side. The sashes can be opened in three configurations, either one is open while the adjacent one is closed, or both sashes can be opened simultaneously.



In a three-sash combination, the center sash remains stationary while the two sashes on either side can be rolled open for ventilation.

220 Rolling

Standard

  • E III Glazing

Options

  • ES4  Version 7
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection and other options available

Our ES4 Version 7 and E III glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

* Courtesy Truseal Technologies

Standard

  • DP 35 Rating

Options

  • DP 40 Rating
  • DP 50 Rating
winter window performance

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Fusion Welded Sash and Frame
  • Sloped Sill with Interlocking Leg
  • Both Sash Tilt In/Full Screen
  • Aluminum Reinforced Meeting Rail
design

Options

    Vinyl Components

    Standard

    • Masterview Rolling Windows are built on precision-calibrated rollers for long life and smooth fingertip operation. Sash is easily removed for cleaning.

    Superior Cam Lock

    • Our Cam Locks are made of alloyed cast steel to stand up to frequent use.
      (inferior vinyl windows have plastic locks)
    • All windows over 28 inches tall have 2 sash locks for maximum protection
    • Produced in white or beige to seamlessly match your window frame
    • Increased leverage assures a  weather tight seal when locked

    Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

    WIndow lock

    Standard

    • Aluminum Extruded Fiberglass 1/2 screen

    Options

    • Aluminum framed fiberglass full screen
    • Full Flexscreens
    • Aluminum Screening Material
    rolling - screen

    Multiple Grill Patterns Available

    • 3/4″ Contoured Grill Between the Glass

      Our grill between the glass incorporates a deluxe shadow bar giving the look and feel of divided panes

    • 3/4″ Contoured SDL with spacer bar

      Our simulated divided light grill incorporates a space giving the look of true divided light

    Grill

    NFRC Thermal Performance Data

    GLAZING U-Factor SHGC VTT CR
    ES U4 Version 7
    Double Strength Glass
    E III
    Low E with Argon .27 .28 .51 .63
    High Performance Low E .31 .28 .51 .59

    NFRC Thermal Performance Data (with Grids)

    GLAZING U-Factor SHGC VTT CR
    ES U4 Version 7
    Double Strength Glass
    E III
    Low E with Argon .27 .25 .45 .63
    High Performance Low E .32 .25 .45 .56

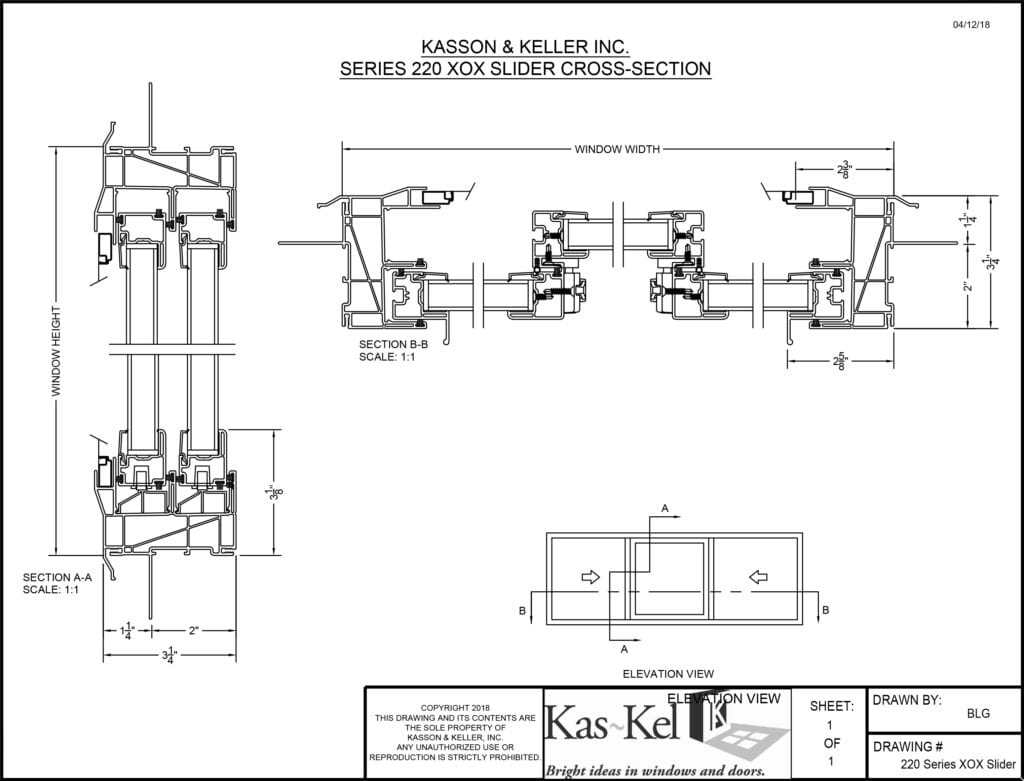

    220 XOX Slider

    Kas-Kel  220/300C Rolling/Slider

    Call Size Manufactured Rough DO Upper DO Lower Opening Clear
    3-0 / 3-0 x 3-0 35-1/2 x 35-1/2 36 x 36 14-3/16 x 29-7/16 14-3/16 x 29-7/16 12-3/4 x 30-1/2 2.70 sq ft
    3-0 / 3-0 x 4-0 35-1/2 x 47-1/2 36 x 48 14-3/16 x 41-7/16 14-3/16 x 41-7/16 12-3/4 x42-1/2 3.75 sq ft
    4-0 / 4-0 x 3-0 47-1/2 x 35-1/2 48 x 36 20-3/16 x 29-7/16 18-3/4 x 30-1/2 18-3/4 x 30-1/2 3.97 sq ft
    4-0 / 4-0 x 4-0 47-1/2 x 47-1/2 48 x 48 20-3/16 x 41-7/16 18-3/4 x 42-1/2 18-3/4 x 42-1/2 5.53 sq ft
    5-0 / 5-0 x 3-0 59-1/2 x 35-1/2 60 x 36 26-3/16 x 29-7/16 24-3/4 x 30-1/2 24-3/4 x 30-1/2 5.24 sq ft
    5-0 / 5-0 x 4-0 59-1/2 x 47-1/2 60 x 48 26-3/16 x 41-7/16 24-3/4 x 42-1/2 24-3/4 x 42-1/2 7.30 sq ft
    6-0 / 6-0 x 3-0 71-1/2 x 35-1/2 72 x 36 32-3/16 x 29-7/16 30-3/4 x 30-1/2 30-3/4 x 30-1/2 6.50 sq ft
    6-0 / 6-0 x 4-0 71-1/2 x 47-1/2 72 x 48 32-3/16 x 41-7/16 30-3/4 x 42-1/2 30-3/4 x 42-1/2 9.07 sq ft
    220 Rolling

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    Best of Class Warranty

    • Lifetime Mechanical Parts
    • Lifetime Vinyl Extrusions
    • Lifetime Insulating Glass
    • Glass Breakage Coverage

    Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

    MADE IN AMERICA

    window girl

    Standard Exterior Colors

    Terrastone
    Terrastone
    Fieldstone
    Fieldstone
    Black
    Black
    Bronze
    Bronze
    Autumn Red
    Autumn Red
    Hunter Green
    Hunter Green

    Have a color in mind? We can custom match it!

    *All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

    Whether you are a builder, architect or home owner, MasterView new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
    AAMA Logo
    NFRC Certified

    * Rating, qualification, or compliancy is dependent on selected options and window style.
