300C Double Hung Window

New Construction

high thermal efficiency – exceptionally solid design

Description

Our most popular new construction window in Cambridge Casing

The 300C Double Hung window utilizes a New England Style 3 ½” Cambridge Flat Casing which integrates a built -in J-channel pocket for siding and nail-fin for installation. (filler available)

An elegant, classic look and advanced design with high thermal ratings and glazing package options that meet or exceed energy requirements.

Factory applied off the edge design ensures maximum weather protection.



Masterview’s double hung windows allow users to control ventilation flow with vertically sliding sashes that open from both the top and bottom.



The sashes can be opened in three configurations. Either the top or bottom can be fully opened while the opposite sash is closed, or both sashes can be opened halfway simultaneously. In all three positions, the double hung window provides a maximum opening of half the total window size. Each double hung window is equipped with a design feature that holds the open sash or sashes in place at any position.



Our double hung windows also have a tilt-in feature that allow for easy cleaning of the outside window from the inside of the building, making multi-story windows hassle-free to clean.

300 C Double Hung

Materials

Standard

  • High-grade PVC delivers exceptional strength and thermal performance
  • Full Fusion Welded Sash and Frame
  • Sloped Sill and Interlock Leg
  • Composite Reinforced Meeting Rail
  • 3-1/4″ Frame Depth
  • 3 ½” Cambridge Casing
  • Bottom and Top Sash Tilt in for easy cleaning
  • Double weather stripped Meeting Rail
  • Nailing fin with J Channel

Options

  • Nail Fin Only
  • Egress Sizing Available
  • Primed Solid Pine Applied Extension Jambs 4-9/16”, 6-9/16” and Custom
  • Sheet Rock Returns
Vinyl Construction
superior materials

Glass Options

Standard
Options
  • ES4 Version 7
  • Clear insulated glass (3/4″)
  • Tints, Heat Reflection, Tempered and Double Stength and other options available
Glass Options
Duralite Spacers

Our E III and ES4 Version 7 glazing packages  can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Performance

Standard

  • DP 40 Rating

Options

  • DP 50 Rating
About DP Ratings
winter window performance

Hardware

SUPERIOR CAM LOCK

  • Our Cam Locks are made of alloyed cast steel to stand up to frequent use. (inferior vinyl windows have plastic locks)
  • All windows over 23 1/2 inches have 2 sash locks for maximum protection
  • Produced in white or beige to seamlessly match your window frame
  • Night Latches
  • Increased leverage assures a  weathertight seal when locked
OPTIONS
  • WOCD sash limiters
About Hardware
Camlock
Kasson & Keller, Inc. Uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

Screens

Standard

  • Extruded aluminum framed fiberglass full screen

Options

  • Extruded aluminum framed locking 1/2 Screen
  • Full Flex Screens on painted exterior frames
  •  Aluminum Screening Material
Screen Options
flexscreen

Grills

Multiple Grill Patterns Available

Grill Patterns
Profiles
Grid-DH

Thermal Data

NFRC Thermal Performance Data

NFRC Thermal Performance Data

GLAZING U-Factor SHGC VTT CR
ES-4 Version 7
Double Strength Glass		 .26 .49 .60 48
E III .28 .37 .51 63
Low E with Argon .28 .28 .63 51
High Performance Low E .32 .28 .51 58

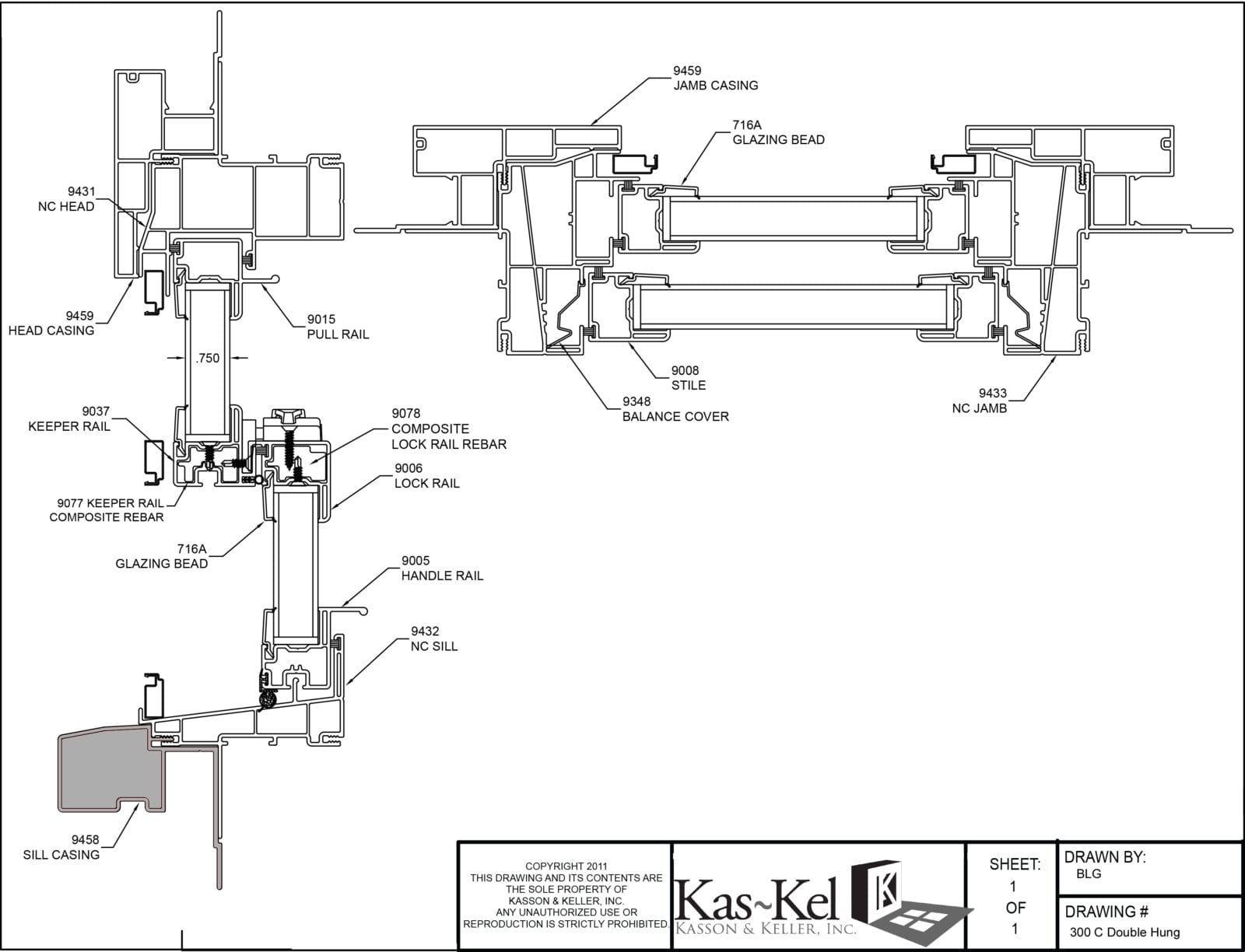

Cross Section

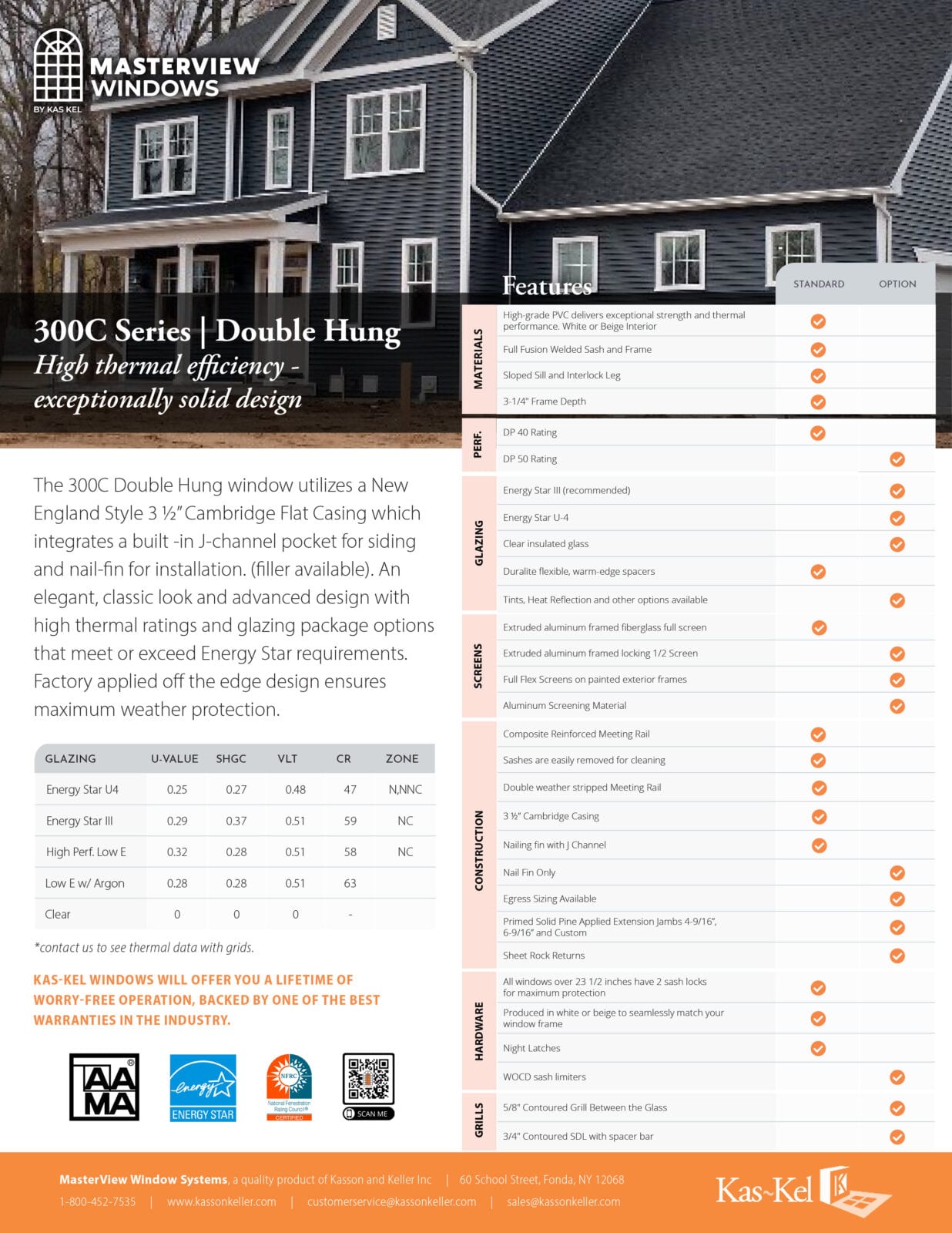

300C DH Brochure
Download pdf

Sizing

Kas-Kel  220/300C Double Hung Windows

Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 X 2-10 21 1/2 X 36 1/2 22 X 37 14 5/8 X 14 1/8 15 5/8 X 15 1/8 16 3/4 X 12 3/4 1.483 sq ft
1-8 X 3-2 21 1/2 X 40 1/2 22 X 41 14 5/8 X 16 1/8 15 5/8 X 17 1/8 16 3/4 X 14 3/4 1.716 sq ft
1-8 X 3-10 21 1/2 X 48 1/2 22 X 49 14 5/8 X 20 1/8 15 5/8 X 21 1/8 16 3/4 X 18 3/4 2.181 sq ft
1-8 X 4-2 21 1/2 X 52 1/2 22 X 53 14 5/8 X 22 1/8 15 5/8 X 23 1/8 16 3/4 X 20 3/4 2.414 sq ft
1-8 X 4-6 21 1/2 X 56 1/2 22 X 57 14 5/8 X 24 1/8 15 5/8 X 25 1/8 16 3/4 X 22 3/4 2.646 sq ft
1-8 X 5-2 21 1/2 X 64 1/2 22 X 65 14 5/8 X 28 1/8 15 5/8 X 29 1/8 16 3/4 X 26 3/4 3.112 sq ft
1-8 X 5-6 21 1/2 X 68 1/2 22 X 69 14 5/8 X 30 1/8 15 5/8 X 31 1/8 16 3/4 X 28 3/4 3.344 sq ft
1-8 X 5-10 21 1/2 X 72 1/2 22 X 73 14 5/8 X 32 1/8 15 5/8 X 33 1/8 16 3/4 X 30 3/4 3.577 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 / 1-8 X 2-10 43 1/2 X 36 1/2 44 X 37 14 5/8 X 14 1/8 15 5/8 X 15 1/8 16 3/4 X 12 3/4 1.483 sq ft
1-8 / 1-8 X 3-2 43 1/2 X 40 1/2 44 X 41 14 5/8 X 16 1/8 15 5/8 X 17 1/8 16 3/4 X 14 3/4 1.716 sq ft
1-8 / 1-8 X 3-10 43 1/2 X 48 1/2 44 X 49 14 5/8 X 20 1/8 15 5/8 X 21 1/8 16 3/4 X 18 3/4 2.181 sq ft
1-8 / 1-8 X 4-2 43 1/2 X 52 1/2 44 X 53 14 5/8 X 22 1/8 15 5/8 X 23 1/8 16 3/4 X 20 3/4 2.414 sq ft
1-8 / 1-8 X 4-6 43 1/2 X 56 1/2 44 X 57 14 5/8 X 24 1/8 15 5/8 X 25 1/8 16 3/4 X 22 3/4 2.646 sq ft
1-8 / 1-8 X 4-10 43 1/2 X 60 1/2 44 X 61 14 5/8 X 26 1/8 15 5/8 X 27 1/8 16 3/4 X 24 3/4 2.879 sq ft
1-8 / 1-8 X 5-2 43 1/2 X 64 1/2 44 X 65 14 5/8 X 28 1/8 15 5/8 X 29 1/8 16 3/4 X 26 3/4 3.112 sq ft
1-8 / 1-8 X 5-6 43 1/2 X 68 1/2 44 X 69 14 5/8 X 30 1/8 15 5/8 X 31 1/8 16 3/4 X 28 3/4 3.344 sq ft
1-8 / 1-8 X 5-10 43 1/2 X 72 1/2 44 X 73 14 5/8 X 32 1/8 15 5/8 X 33 1/8 16 3/4 X 30 3/4 3.577 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
1-8 / 1-8 / 1-8 X 2-10 65 1/2 X 36 1/2 66 X 37 14 5/8 X 14 1/8 15 5/8 X 15 1/8 16 3/4 X 12 3/4 1.483 sq ft
1-8 / 1-8 / 1-8 X 3-2 65 1/2 X 40 1/2 66 X 41 14 5/8 X 16 1/8 15 5/8 X 17 1/8 16 3/4 X 14 3/4 1.716 sq ft
1-8 / 1-8 / 1-8 X 3-10 65 1/2 X 48 1/2 66 X 49 14 5/8 X 20 1/8 15 5/8 X 21 1/8 16 3/4 X 18 3/4 2.181 sq ft
1-8 / 1-8 / 1-8 X 4-2 65 1/2 X 52 1/2 66 X 53 14 5/8 X 22 1/8 15 5/8 X 23 1/8 16 3/4 X 20 3/4 2.414 sq ft
1-8 / 1-8 / 1-8 X 4-6 65 1/2 X 56 1/2 66 X 57 14 5/8 X 24 1/8 15 5/8 X 25 1/8 16 3/4 X 22 3/4 2.646 sq ft
1-8 / 1-8 / 1-8 X 4-10 65 1/2 X 60 1/2 66 X 61 14 5/8 X 26 1/8 15 5/8 X 27 1/8 16 3/4 X 24 3/4 2.879 sq ft
1-8 / 1-8 / 1-8 X 5-2 65 1/2 X 64 1/2 66 X 65 14 5/8 X 28 1/8 15 5/8 X 29 1/8 16 3/4 X 26 3/4 3.112 sq ft
1-8 / 1-8 / 1-8 X 5-6 65 1/2 X 68 1/2 66 X 69 14 5/8 X 30 1/8 15 5/8 X 31 1/8 16 3/4 X 28 3/4 3.344 sq ft
1-8 / 1-8 / 1-8 X 5-10 65 1/2 X 72 1/2 66 X 73 14 5/8 X 32 1/8 15 5/8 X 33 1/8 16 3/4 X 30 3/4 3.577 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 X 2-10 25 1/2 X 36 1/2 26 X 37 18 5/8 X 14 1/8 19 5/8 X 15 1/8 20 3/4 X 12 3/4 1.837 sq ft
2-0 X 3-2 25 1/2 X 40 1/2 26 X 41 18 5/8 X 16 1/8 19 5/8 X 17 1/8 20 3/4 X 14 3/4 2.125 sq ft
2-0 X 3-10 25 1/2 X 48 1/2 26 X 49 18 5/8 X 20 1/8 19 5/8 X 21 1/8 20 3/4 X 18 3/4 2.702 sq ft
2-0 X 4-2 25 1/2 X 52 1/2 26 X 53 18 5/8 X 22 1/8 19 5/8 X 23 1/8 20 3/4 X 20 3/4 2.99 sq ft
2-0 X 4-6 25 1/2 X 56 1/2 26 X 57 18 5/8 X 24 1/8 19 5/8 X 25 1/8 20 3/4 X 22 3/4 3.278 sq ft
2-0 X 4-10 25 1/2 X 60 1/2 26 X 61 18 5/8 X 26 1/8 19 5/8 X 27 1/8 20 3/4 X 24 3/4 3.566 sq ft
2-0 X 5-2 25 1/2 X 64 1/2 26 X 65 18 5/8 X 28 1/8 19 5/8 X 29 1/8 20 3/4 X 26 3/4 3.855 sq ft
2-0 X 5-6 25 1/2 X 68 1/2 26 X 69 18 5/8 X 30 1/8 19 5/8 X 31 1/8 20 3/4 X 28 3/4 4.143 sq ft
2-0 X 5-10 25 1/2 X 72 1/2 26 X 73 18 5/8 X 32 1/8 19 5/8 X 33 1/8 20 3/4 X 30 3/4 4.431 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 / 2-0 X 2-10 51 1/2 X 36 1/2 52 X 37 18 5/8 X 14 1/8 19 5/8 X 15 1/8 20 3/4 X 12 3/4 1.837 sq ft
2-0 / 2-0 X 3-2 51 1/2 X 40 1/2 52 X 41 18 5/8 X 16 1/8 19 5/8 X 17 1/8 20 3/4 X 14 3/4 2.125 sq ft
2-0 / 2-0 X 3-10 51 1/2 X 48 1/2 52 X 49 18 5/8 X 20 1/8 19 5/8 X 21 1/8 20 3/4 X 18 3/4 2.702 sq ft
2-0 / 2-0 X 4-2 51 1/2 X 52 1/2 52 X 53 18 5/8 X 22 1/8 19 5/8 X 23 1/8 20 3/4 X 20 3/4 2.99 sq ft
2-0 / 2-0 X 4-6 51 1/2 X 56 1/2 52 X 57 18 5/8 X 24 1/8 19 5/8 X 25 1/8 20 3/4 X 22 3/4 3.278 sq ft
2-0 / 2-0 X 4-10 51 1/2 X 60 1/2 52 X 61 18 5/8 X 26 1/8 19 5/8 X 27 1/8 20 3/4 X 24 3/4 3.566 sq ft
2-0 / 2-0 X 5-2 51 1/2 X 64 1/2 52 X 65 18 5/8 X 28 1/8 19 5/8 X 29 1/8 20 3/4 X 26 3/4 3.855 sq ft
2-0 / 2-0 X 5-6 51 1/2 X 68 1/2 52 X 69 18 5/8 X 30 1/8 19 5/8 X 31 1/8 20 3/4 X 28 3/4 4.143 sq ft
2-0 / 2-0 X 5-10 51 1/2 X 72 1/2 52 X 73 18 5/8 X 32 1/8 19 5/8 X 33 1/8 20 3/4 X 30 3/4 4.431 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-0 / 2-0 / 2-0 X 2-10 77 1/2 X 36 1/2 78 X 37 18 5/8 X 14 1/8 19 5/8 X 15 1/8 20 3/4 X 12 3/4 1.837 sq ft
2-0 / 2-0 / 2-0 X 3-2 77 1/2 X 40 1/2 78 X 41 18 5/8 X 16 1/8 19 5/8 X 17 1/8 20 3/4 X 14 3/4 2.125 sq ft
2-0 / 2-0 / 2-0 X 3-10 77 1/2 X 48 1/2 78 X 49 18 5/8 X 20 1/8 19 5/8 X 21 1/8 20 3/4 X 18 3/4 2.702 sq ft
2-0 / 2-0 / 2-0 X 4-2 77 1/2 X 52 1/2 78 X 53 18 5/8 X 22 1/8 19 5/8 X 23 1/8 20 3/4 X 20 3/4 2.99 sq ft
2-0 / 2-0 / 2-0 X 4-6 77 1/2 X 56 1/2 78 X 57 18 5/8 X 24 1/8 19 5/8 X 25 1/8 20 3/4 X 22 3/4 3.278 sq ft
2-0 / 2-0 / 2-0 X 4-10 77 1/2 X 60 1/2 78 X 61 18 5/8 X 26 1/8 19 5/8 X 27 1/8 20 3/4 X 24 3/4 3.566 sq ft
2-0 / 2-0 / 2-0 X 5-2 77 1/2 X 64 1/2 78 X 65 18 5/8 X 28 1/8 19 5/8 X 29 1/8 20 3/4 X 26 3/4 3.855 sq ft
2-0 / 2-0 / 2-0 X 5-6 77 1/2 X 68 1/2 78 X 69 18 5/8 X 30 1/8 19 5/8 X 31 1/8 20 3/4 X 28 3/4 4.143 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 X 2-10 29 1/2 X 36 1/2 30 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
2-4 X 3-2 29 1/2 X 40 1/2 30 X 41  22 5/8 X 16 1/8 23 5/8 X 17 1/ 24 3/4 X 14 3/4 2.535 sq ft
2-4 X 3-10 29 1/2 X 48 1/2 30 X 49 22 5/8 X 20 1/8 23 5/8 X 21 1/8 24 3/4 X 18 3/4 3.223 sq ft
2-4 X 4-2 29 1/2 X 52 1/2 30 X 53 22 5/8 X 22 1/8 23 5/8 X 23 1/8 24 3/4 X 20 3/4 3.566 sq ft
2-4 X 4-6 29 1/2 X 56 1/2 30 X 57 22 5/8 X 24 1/8 23 5/8 X 25 1/8 24 3/4 X 22 3/4 3.91 sq ft
2-4 X 4-10 29 1/2 X 60 1/2 30 X 61 22 5/8 X 26 1/8 23 5/8 X 27 1/8 24 3/4 X 24 3/4 4.254 sq ft
2-4 X 5-2 29 1/2 X 64 1/2 30 X 65 22 5/8 X 28 1/8 23 5/8 X 29 1/8 24 3/4 X 26 3/4 4.598 sq ft
2-4 X 5-6 29 1/2 X 68 1/2 30 X 69 22 5/8 X 30 1/8 23 5/8 X 31 1/8 24 3/4 X 28 3/4 4.941 sq ft
2-4 X 5-10  29 1/2 X 72 1/2 30 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
2-4 X 2-10 29 1/2 X 36 1/2 30 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 / 2-4 X 2-10 59 1/2 X 36 1/2 60 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
2-4 / 2-4 X 3-2 59 1/2 X 40 1/2 60 X 41 22 5/8 X 16 1/8 23 5/8 X 17 1/8 24 3/4 X 14 3/4 2.535 sq ft
2-4 / 2-4 X 3-10 59 1/2 X 48 1/2 60 X 49 22 5/8 X 20 1/8 23 5/8 X 21 1/8  24 3/4 X 18 3/4 3.223 sq ft
2-4 / 2-4 X 4-2 59 1/2 X 52 1/2 60 X 53 22 5/8 X 22 1/8 23 5/8 X 23 1/8  24 3/4 X 20 3/4 3.566 sq ft
2-4 / 2-4 X 4-6 59 1/2 X 56 1/2 60 X 57 22 5/8 X 24 1/8 23 5/8 X 25 1/8 24 3/4 X 22 3/4 3.91 sq ft
2-4 / 2-4 X 4-10 59 1/2 X 60 1/2 60 X 61 22 5/8 X 26 1/8 23 5/8 X 27 1/8 24 3/4 X 24 3/4 4.254 sq ft
2-4 / 2-4 X 5-2 59 1/2 X 64 1/2 60 X 65 22 5/8 X 28 1/8 23 5/8 X 29 1/8 24 3/4 X 26 3/4 4.598 sq ft
2-4 / 2-4 X 5-6 59 1/2 X 68 1/2 60 X 69 22 5/8 X 30 1/8 23 5/8 X 31 1/8 24 3/4 X 28 3/4 4.941 sq ft
2-4 / 2-4 X 5-10 59 1/2 X 72 1/2 60 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
2-4 / 2-4 X 5-10 59 1/2 X 72 1/2 60 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-4 / 2-4 / 2-4 X 2-10 89 1/2 X 36 1/2 90 X 37 22 5/8 X 14 1/8 23 5/8 X 15 1/8 24 3/4 X 12 3/4 2.191 sq ft
2-4 / 2-4 / 2-4 X 3-2 89 1/2 X 40 1/2 90 X 41 22 5/8 X 16 1/8 23 5/8 X 17 1/8 24 3/4 X 14 3/4 2.535 sq ft
2-4 / 2-4 / 2-4 X 3-10 89 1/2 X 48 1/2 90 X 49 22 5/8 X 20 1/8 23 5/8 X 21 1/8 24 3/4 X 18 3/4 3.223 sq ft
2-4 / 2-4 / 2-4 X 4-2 89 1/2 X 52 1/2 90 X 53 22 5/8 X 22 1/8 23 5/8 X 23 1/8 24 3/4 X 20 3/4 3.566 sq ft
2-4 / 2-4 / 2-4 X 4-6 89 1/2 X 56 1/2 90 X 57 22 5/8 X 24 1/8 23 5/8 X 25 1/8 24 3/4 X 22 3/4 3.91 sq ft
2-4 / 2-4 / 2-4 X 4-10 89 1/2 X 60 1/2 90 X 61 22 5/8 X 26 1/8 23 5/8 X 27 1/8 24 3/4 X 24 3/4 4.254 sq ft
2-4 / 2-4 / 2-4 X 5-2 89 1/2 X 64 1/2 90 X 65 22 5/8 X 28 1/8 23 5/8 X 29 1/8 24 3/4 X 26 3/4 4.598 sq ft
2-4 / 2-4 / 2-4 X 5-6 89 1/2 X 68 1/2 90 X 69 22 5/8 X 30 1/8 23 5/8 X 31 1/8 24 3/4 X 28 3/4 4.941 sq ft
2-4 / 2-4 / 2-4 X 5-10 89 1/2 X 72 1/2 90 X 73 22 5/8 X 32 1/8 23 5/8 X 33 1/8 24 3/4 X 30 3/4 5.285 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-6 X 2-10 31 1/2 X 36 1/2 32 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
2-6 X 3-2 31 1/2 X 40 1/2 32 X 41 24 5/8 X 16 1/8 25 5/8 X 17 1/8 26 3/4 X 14 3/4 2.74 sq ft
 2-6 X 3-10 31 1/2 X 48 1/2 32 X 49 24 5/8 X 20 1/8 25 5/8 X 21 1/8 26 3/4 X 18 3/4 3.483 sq ft
2-6 X 4-2 31 1/2 X 52 1/2 32 X 53 24 5/8 X 22 1/8  25 5/8 X 23 1/8 26 3/4 X 20 3/4 3.855 sq ft
2-6 X 4-6 31 1/2 X 56 1/2 32 X 57 24 5/8 X 24 1/8 25 5/8 X 25 1/8 26 3/4 X 22 3/4 4.226 sq ft
 2-6 X 4-10 31 1/2 X 60 1/2 32 X 61 24 5/8 X 26 1/8 25 5/8 X 27 1/8  26 3/4 X 24 3/4 4.598 sq ft
 2-6 X 5-2 31 1/2 X 64 1/2 32 X 65 24 5/8 X 28 1/8 25 5/8 X 29 1/8 26 3/4 X 26 3/4 4.969 sq ft
 2-6 X 5-6 31 1/2 X 68 1/2 32 X 69 24 5/8 X 30 1/8 25 5/8 X 31 1/8 26 3/4 X 28 3/4 5.341 sq ft
2-6 X 5-10 31 1/2 X 72 1/2 32 X 73 24 5/8 X 32 1/8 25 5/8 X 33 1/8 26 3/4 X 30 3/4 5.712 sq ft
2-6 X 2-10 31 1/2 X 36 1/2 32 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-6 / 2-6 X 2-10 63 1/2 X 36 1/2 64 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
2-6 / 2-6 X 3-2 63 1/2 X 40 1/2 64 X 41  24 5/8 X 16 1/8 25 5/8 X 17 1/8 26 3/4 X 14 3/4 2.74 sq ft
2-6 / 2-6 X 3-10 63 1/2 X 48 1/2 64 X 49 24 5/8 X 20 1/8 25 5/8 X 21 1/8 26 3/4 X 18 3/4 3.483 sq ft
2-6 / 2-6 X 4-2 63 1/2 X 52 1/2 64 X 53 24 5/8 X 22 1/8 25 5/8 X 23 1/8 26 3/4 X 20 3/4 3.855 sq ft
2-6 / 2-6 X 4-6 63 1/2 X 56 1/2 64 X 57 24 5/8 X 24 1/8 25 5/8 X 25 1/8 26 3/4 X 22 3/4 4.226 sq ft
2-6 / 2-6 X 4-10 63 1/2 X 60 1/2 64 X 61 24 5/8 X 26 1/8 25 5/8 X 27 1/8 26 3/4 X 24 3/4 4.598 sq ft
2-6 / 2-6 X 5-2 63 1/2 X 64 1/2 64 X 65 24 5/8 X 28 1/8 25 5/8 X 29 1/8 26 3/4 X 26 3/4 4.969 sq ft
2-6 / 2-6 X 5-6 63 1/2 X 68 1/2 64 X 69 24 5/8 X 30 1/8 25 5/8 X 31 1/8 26 3/4 X 28 3/4 5.341 sq ft
2-6 / 2-6 X 5-10 63 1/2 X 72 1/2 64 X 73 24 5/8 X 32 1/8 25 5/8 X 33 1/8 26 3/4 X 30 3/4 5.712 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-6 / 2-6 / 2-6 X 2-10 95 1/2 X 36 1/2  96 X 37 24 5/8 X 14 1/8 25 5/8 X 15 1/8 26 3/4 X 12 3/4 2.368 sq ft
2-6 / 2-6 / 2-6 X 3-2 95 1/2 X 40 1/2 96 X 41 24 5/8 X 16 1/8 25 5/8 X 17 1/8 26 3/4 X 14 3/4 2.74 sq ft
2-6 / 2-6 / 2-6 X 3-10 95 1/2 X 48 1/2 96 X 49 24 5/8 X 20 1/8 25 5/8 X 21 1/8 26 3/4 X 18 3/4 3.483 sq ft
2-6 / 2-6 / 2-6 X 4-2 95 1/2 X 52 1/2 96 X 53 24 5/8 X 22 1/8 25 5/8 X 23 1/8 26 3/4 X 20 3/4 3.855 sq ft
2-6 / 2-6 / 2-6 X 4-6 95 1/2 X 56 1/2 96 X 57 24 5/8 X 24 1/8 25 5/8 X 25 1/8 26 3/4 X 22 3/4 4.226 sq ft
2-6 / 2-6 / 2-6 X 4-10 95 1/2 X 60 1/2 96 X 61 24 5/8 X 26 1/8 25 5/8 X 27 1/8 26 3/4 X 24 3/4 4.598 sq ft
2-6 / 2-6 / 2-6 X 5-2 95 1/2 X 64 1/2 96 X 65 24 5/8 X 28 1/8 25 5/8 X 29 1/8 26 3/4 X 26 3/4 4.969 sq ft
2-6 / 2-6 / 2-6 X 5-6 95 1/2 X 68 1/2 96 X 69 24 5/8 X 30 1/8 25 5/8 X 31 1/8 26 3/4 X 28 3/4 5.341 sq ft
2-6 / 2-6 / 2-6 X 5-10 95 1/2 X 72 1/2 96 X 73 24 5/8 X 32 1/8 25 5/8 X 33 1/8 26 3/4 X 30 3/4 5.712 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-8 X 2-10 33 1/2 X 36 1/2 34 X 37 26 5/8 X 14 1/8 27 5/8 X 15 1/8 28 3/4 X 12 3/4 2.546 sq ft
2-8 X 3-2 33 1/2 X 40 1/2 34 X 41 26 5/8 X 16 1/8 27 5/8 X 17 1/8 28 3/4 X 14 3/4 2.945 sq ft
2-8 X 3-10 33 1/2 X 48 1/2 34 X 49 26 5/8 X 20 1/8 27 5/8 X 21 1/8 28 3/4 X 18 3/4 3.743 sq ft
2-8 X 4-2 33 1/2 X 52 1/2 34 X 53 26 5/8 X 22 1/8 27 5/8 X 23 1/8 28 3/4 X 20 3/4 4.143 sq ft
2-8 X 4-6 33 1/2 X 56 1/2 34 X 57 26 5/8 X 24 1/8 27 5/8 X 25 1/8 28 3/4 X 22 3/4 4.542 sq ft
2-8 X 4-10 33 1/2 X 60 1/2 34 X 61 26 5/8 X 26 1/8 27 5/8 X 27 1/8 28 3/4 X 24 3/4 4.941 sq ft
2-8 X 5-2 33 1/2 X 64 1/2 34 X 65 26 5/8 X 28 1/8 27 5/8 X 29 1/8 28 3/4 X 26 3/4 5.341 sq ft
2-8 X 5-6 33 1/2 X 68 1/2 34 X 69 26 5/8 X 30 1/8 27 5/8 X 31 1/8 28 3/4 X 28 3/4 5.74 sq ft
2-8 X 5-10 33 1/2 X 72 1/2 34 X 73 26 5/8 X 32 1/8 27 5/8 X 33 1/8 28 3/4 X 30 3/4 6.139 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-8 / 2-8 X 2-10 67 1/2 X 36 1/2 68 X 37 26 5/8 X 14 1/8 27 5/8 X 15 1/8 28 3/4 X 12 3/4 2.546 sq ft
2-8 / 2-8 X 3-2 67 1/2 X 40 1/2 68 X 41 26 5/8 X 16 1/8 27 5/8 X 17 1/8 28 3/4 X 14 3/4 2.945 sq ft
2-8 / 2-8 X 3-10 67 1/2 X 48 1/2 68 X 49 26 5/8 X 20 1/8 27 5/8 X 21 1/8 28 3/4 X 18 3/4 3.743 sq ft
2-8 / 2-8 X 4-2 67 1/2 X 52 1/2 68 X 53 26 5/8 X 22 1/8 27 5/8 X 23 1/8 28 3/4 X 20 3/4 4.143 sq ft
2-8 / 2-8 X 4-6 67 1/2 X 56 1/2 68 X 57 26 5/8 X 24 1/8 27 5/8 X 25 1/8 28 3/4 X 22 3/4 4.542 sq ft
2-8 / 2-8 X 4-10 67 1/2 X 60 1/2 68 X 61 26 5/8 X 26 1/8 27 5/8 X 27 1/8 28 3/4 X 24 3/4 4.941 sq ft
2-8 / 2-8 X 5-2 67 1/2 X 64 1/2 68 X 65 26 5/8 X 28 1/8 27 5/8 X 29 1/8 28 3/4 X 26 3/4 5.341 sq ft
2-8 / 2-8 X 5-6 67 1/2 X 68 1/2 68 X 69 26 5/8 X 30 1/8 27 5/8 X 31 1/8 28 3/4 X 28 3/4 5.74 sq ft
2-8 / 2-8 X 5-10 67 1/2 X 72 1/2 68 X 73 26 5/8 X 32 1/8 27 5/8 X 33 1/8 28 3/4 X 30 3/4 6.139 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
2-8 / 2-8 / 2-8 X 2-10 101 1/2 X 36 1/2 102 X 37 26 5/8 X 14 1/8 27 5/8 X 15 1/8 28 3/4 X 12 3/4 2.546 sq ft
2-8 / 2-8 / 2-8 X 3-2 101 1/2 X 40 1/2 102 X 41 26 5/8 X 16 1/8 27 5/8 X 17 1/8 28 3/4 X 14 3/4 2.945 sq ft
2-8 / 2-8 / 2-8 X 3-10 101 1/2 X 48 1/2 102 X 49 26 5/8 X 20 1/8 27 5/8 X 21 1/8 28 3/4 X 18 3/4 3.743 sq ft
2-8 / 2-8 / 2-8 X 4-2 101 1/2 X 52 1/2 102 X 53 26 5/8 X 22 1/8 27 5/8 X 23 1/8 28 3/4 X 20 3/4 4.143 sq ft
2-8 / 2-8 / 2-8 X 4-6 101 1/2 X 56 1/2 102 X 57 26 5/8 X 24 1/8 27 5/8 X 25 1/8 28 3/4 X 22 3/4 4.542 sq ft
2-8 / 2-8 / 2-8 X 4-10 101 1/2 X 60 1/2 102 X 61 26 5/8 X 26 1/8 27 5/8 X 27 1/8 28 3/4 X 24 3/4 4.941 sq ft
2-8 / 2-8 / 2-8 X 5-2 101 1/2 X 64 1/2 102 X 65 26 5/8 X 28 1/8 27 5/8 X 29 1/8 28 3/4 X 26 3/4 5.341 sq ft
2-8 / 2-8 / 2-8 X 5-6 101 1/2 X 68 1/2 102 X 69 26 5/8 X 30 1/8 27 5/8 X 31 1/8 28 3/4 X 28 3/4 5.74 sq ft
2-8 / 2-8 / 2-8 X 5-10 101 1/2 X 72 1/2 102 X 73 26 5/8 X 32 1/8 27 5/8 X 33 1/8 28 3/4 X 30 3/4 6.139 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-0 X 2-10 37 1/2 X 36 1/2 38 X 37 30 5/8 X 14 1/8 31 5/8 X 15 1/8 32 3/4 X 12 3/4 2.9 sq ft
3-0 X 3-2 37 1/2 X 40 1/2 38 X 41 30 5/8 X 16 1/8 31 5/8 X 17 1/8 32 3/4 X 14 3/4 3.355 sq ft
3-0 X 3-10 37 1/2 X 48 1/2 38 X 49 30 5/8 X 20 1/8 31 5/8 X 21 1/8 32 3/4 X 18 3/4 4.264 sq ft
3-0 X 4-2 37 1/2 X 52 1/2 38 X 53 30 5/8 X 22 1/8 31 5/8 X 23 1/8 32 3/4 X 20 3/4 4.719 sq ft
3-0 X 4-6 37 1/2 X 56 1/2 38 X 57 30 5/8 X 24 1/8  31 5/8 X 25 1/8 32 3/4 X 22 3/4 5.174 sq ft
3-0 X 4-10 37 1/2 X 60 1/2 38 X 61 30 5/8 X 26 5/8 31 5/8 X 26 5/8 32 3/4 X 25 1/4 5.743 sq ft
3-0 X 5-2 37 1/2 X 64 1/2 38 X 65 30 5/8 X 28 1/8 31 5/8 X 29 1/8 32 3/4 X 26 3/4 6.084 sq ft
3-0 X 5-6 37 1/2 X 68 1/2 38 X 69  30 5/8 X 30 1/8 31 5/8 X 31 1/8 32 3/4 X 28 3/4 6.539 sq ft
3-0 X 5-10 37 1/2 X 72 1/2 38 X 73 30 5/8 X 32 1/8  31 5/8 X 33 1/8 32 3/4 X 30 3/4 6.993 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-0 / 3-0 X 2-10 75 1/2 X 36 1/2 76 X 37 30 5/8 X 14 1/8 31 5/8 X 15 1/8 32 3/4 X 12 3/4 2.9 sq ft
3-0 / 3-0 X 3-2 75 1/2 X 40 1/2 76 X 41 30 5/8 X 16 1/8 31 5/8 X 17 1/8 32 3/4 X 14 3/4 3.355 sq ft
3-0 / 3-0 X 3-10 75 1/2 X 48 1/2 76 X 49 30 5/8 X 20 1/8 31 5/8 X 21 1/8 32 3/4 X 18 3/4 4.264 sq ft
3-0 / 3-0 X 4-2 75 1/2 X 52 1/2 76 X 53 30 5/8 X 22 1/8 31 5/8 X 23 1/8 32 3/4 X 20 3/4 4.719 sq ft
3-0 / 3-0 X 4-6 75 1/2 X 56 1/2 76 X 57 30 5/8 X 24 1/8 31 5/8 X 25 1/8 32 3/4 X 22 3/4 5.174 sq ft
3-0 / 3-0 X 4-10 75 1/2 X 60 1/2 76 X 61 30 5/8 X 26 5/8 31 5/8 X 26 5/8 32 3/4 X 25 1/4 5.743 sq ft
3-0 / 3-0 X 5-2 75 1/2 X 64 1/2 76 X 65 30 5/8 X 28 1/8 31 5/8 X 29 1/8 32 3/4 X 26 3/4 6.084 sq ft
3-0 / 3-0 X 5-6 75 1/2 X 68 1/2 76 X 69 30 5/8 X 30 1/8 31 5/8 X 31 1/8 32 3/4 X 28 3/4 6.539 sq ft
3-0 / 3-0 X 5-10 75 1/2 X 72 1/2 76 X 73 30 5/8 X 32 1/8 31 5/8 X 33 1/8 32 3/4 X 30 3/4 6.993 sq ft
3-0 / 3-0 / 3-0 X 2-10 113 1/2 X 36 1/2 114 X 37 30 5/8 X 14 1/8 31 5/8 X 15 1/8 32 3/4 X 12 3/4 2.9 sq ft
3-0 / 3-0 / 3-0 X 3-2 113 1/2 X 40 1/2 114 X 41 30 5/8 X 16 1/8 31 5/8 X 17 1/8 32 3/4 X 14 3/4 3.355 sq ft
3-0 / 3-0 / 3-0 X 3-10 113 1/2 X 48 1/2 114 X 49 30 5/8 X 20 1/8 31 5/8 X 21 1/8 32 3/4 X 18 3/4 4.264 sq ft
3-0 / 3-0 / 3-0 X 4-2 113 1/2 X 52 1/2 114 X 53 30 5/8 X 22 1/8 31 5/8 X 23 1/8 32 3/4 X 20 3/4 4.719 sq ft
3-0 / 3-0 / 3-0 X 4-6 113 1/2 X 56 1/2 114 X 57 30 5/8 X 24 1/8 31 5/8 X 25 1/8 32 3/4 X 22 3/4 5.174 sq ft
3-0 / 3-0 / 3-0 X 4-10 113 1/2 X 60 1/2 114 X 61 30 5/8 X 26 5/8 31 5/8 X 26 5/8 32 3/4 X 25 1/4 5.743 sq ft
3-0 / 3-0 / 3-0 X 5-2 113 1/2 X 64 1/2 114 X 65 30 5/8 X 28 1/8 31 5/8 X 29 1/8 32 3/4 X 26 3/4 6.084 sq ft
3-0 / 3-0 / 3-0 X 5-6 113 1/2 X 68 1/2 114 X 69 30 5/8 X 30 1/8 31 5/8 X 31 1/8 32 3/4 X 28 3/4 6.539 sq ft
3-0 / 3-0 / 3-0 X 5-10 113 1/2 X 72 1/2 114 X 73 30 5/8 X 32 1/8 31 5/8 X 33 1/8 32 3/4 X 30 3/4 6.993 sq ft
 3-4 X 2-10 41 1/2 X 36 1/2 42 X 37 34 5/8 X 14 1/8  35 5/8 X 15 1/8 36 3/4 X 12 3/4 3.254 sq ft
3-4 X 3-2 41 1/2 X 40 1/2 42 X 41 34 5/8 X 16 1/8 35 5/8 X 17 1/8 36 3/4 X 14 3/4 3.764 sq ft
3-4 X 3-10  41 1/2 X 48 1/2 42 X 49 34 5/8 X 20 1/8 35 5/8 X 21 1/8 36 3/4 X 18 3/4 4.785 sq ft
3-4 X 4-2 41 1/2 X 52 1/2 42 X 53 34 5/8 X 22 1/8 35 5/8 X 23 1/8 36 3/4 X 20 3/4 5.296 sq ft
3-4 X 4-6 41 1/2 X 56 1/2 42 X 57 34 5/8 X 24 1/8 35 5/8 X 25 1/8 36 3/4 X 22 3/4 5.806 sq ft
3-4 X 4-10 41 1/2 X 60 1/2 42 X 61 34 5/8 X 26 1/8 35 5/8 X 27 1/8 36 3/4 X 24 3/4 6.316 sq ft
3-4 X 5-2 41 1/2 X 64 1/2 42 X 65 34 5/8 X 28 1/8 35 5/8 X 29 1/8 36 3/4 X 26 3/4 6.827 sq ft
3-4 X 5-6 41 1/2 X 68 1/2 42 X 69 34 5/8 X 30 1/8 35 5/8 X 31 1/8 36 3/4 X 28 3/4 7.337 sq ft
3-4 X 5-10 41 1/2 X 72 1/2 42 X 73 34 5/8 X 32 1/8 35 5/8 X 33 1/8 36 3/4 X 30 3/4 7.848 sq ft
83 1/2 X 36 1/2 84 X 37 34 5/8 X 14 1/8 35 5/8 X 15 1/8 36 3/4 X 12 3/4 3.254 sq ft
3-4 / 3-4 X 3-2 83 1/2 X 40 1/2 84 X 41 34 5/8 X 16 1/8 35 5/8 X 17 1/8 36 3/4 X 14 3/4 3.764 sq ft
3-4 / 3-4 X 3-10 83 1/2 X 48 1/2 84 X 49 34 5/8 X 20 1/8 35 5/8 X 21 1/8 36 3/4 X 18 3/4 4.785 sq ft
3-4 / 3-4 X 4-2 83 1/2 X 52 1/2 84 X 53 34 5/8 X 22 1/8 35 5/8 X 23 1/8 36 3/4 X 20 3/4 5.296 sq ft
3-4 / 3-4 X 4-6 83 1/2 X 56 1/2 84 X 57 34 5/8 X 24 1/8 35 5/8 X 25 1/8 36 3/4 X 22 3/4 5.806 sq ft
3-4 / 3-4 X 4-10 83 1/2 X 60 1/2 84 X 61 34 5/8 X 26 1/8 35 5/8 X 27 1/8 6 3/4 X 24 3/4 6.316 sq ft
3-4 / 3-4 X 5-2 83 1/2 X 64 1/2 84 X 65 34 5/8 X 28 1/8 35 5/8 X 29 1/8 36 3/4 X 26 3/4 6.827 sq ft
3-4 / 3-4 X 5-6 83 1/2 X 68 1/2 84 X 69 34 5/8 X 30 1/8 35 5/8 X 31 1/8 36 3/4 X 28 3/4 7.337 sq ft
3-4 / 3-4 X 5-10 83 1/2 X 72 1/2 84 X 73 34 5/8 X 32 1/8 35 5/8 X 33 1/8 36 3/4 X 30 3/4 7.848 sq ft
3-8 X 2-10 45 1/2 X 36 1/2 46 X 37 38 5/8 X 14 1/8 39 5/8 X 15 1/8  40 3/4 X 12 3/4 3.608 sq ft
3-8 X 3-2 45 1/2 X 40 1/2 46 X 41 38 5/8 X 16 1/8 39 5/8 X 17 1/8 40 3/4 X 14 3/4 4.174 sq ft
3-8 X 3-10 45 1/2 X 48 1/2 46 X 49 38 5/8 X 20 1/8 39 5/8 X 21 1/8 40 3/4 X 18 3/4 5.306 sq ft
3-8 X 4-2 45 1/2 X 52 1/2 46 X 53 38 5/8 X 22 1/8 39 5/8 X 23 1/8 40 3/4 X 20 3/4 5.872 sq ft
3-8 X 4-6 45 1/2 X 56 1/2 46 X 57 38 5/8 X 24 1/8 39 5/8 X 25 1/8 40 3/4 X 22 3/4 6.438 sq ft
3-8 X 4-10 45 1/2 X 60 1/2 46 X 61 38 5/8 X 26 1/8 39 5/8 X 27 1/8 40 3/4 X 24 3/4 7.004 sq ft
3-8 X 5-2 45 1/2 X 64 1/2 46 X 65 38 5/8 X 28 1/8 39 5/8 X 29 1/8 40 3/4 X 26 3/4 7.57 sq ft
3-8 X 5-6 45 1/2 X 68 1/2 46 X 69 38 5/8 X 30 1/8 39 5/8 X 31 1/8 40 3/4 X 28 3/4 8.136 sq ft
3-8 X 5-10 45 1/2 X 72 1/2 46 X 73 38 5/8 X 32 1/8 39 5/8 X 33 1/8 40 3/4 X 30 3/4 8.702 sq ft
Call Size Manufactured Rough DO Upper DO Lower Opening Clear
3-8 / 3-8 X 2-10 91 1/2 X 36 1/2 92 X 37 38 5/8 X 14 1/8 39 5/8 X 15 1/8 40 3/4 X 12 3/4 3.608 sq ft
3-8 / 3-8 X 3-2 91 1/2 X 40 1/2 92 X 41 38 5/8 X 16 1/8 39 5/8 X 17 1/8  40 3/4 X 14 3/4 4.174 sq ft
3-8 / 3-8 X 3-10 91 1/2 X 48 1/2 92 X 49 38 5/8 X 20 1/8 39 5/8 X 21 1/8 40 3/4 X 18 3/4 5.306 sq ft
3-8 / 3-8 X 4-2 91 1/2 X 52 1/2 92 X 53 38 5/8 X 22 1/8 39 5/8 X 23 1/8  40 3/4 X 20 3/4 5.872 sq ft
3-8 / 3-8 X 4-6 91 1/2 X 56 1/2 92 X 57 38 5/8 X 24 1/8 39 5/8 X 25 1/8 40 3/4 X 22 3/4 6.438 sq ft
3-8 / 3-8 X 4-10 91 1/2 X 60 1/2 92 X 61 38 5/8 X 26 1/8 39 5/8 X 27 1/8 40 3/4 X 24 3/4 7.004 sq ft
3-8 / 3-8 X 5-2 91 1/2 X 64 1/2 92 X 65 38 5/8 X 28 1/8 39 5/8 X 29 1/8 40 3/4 X 26 3/4 7.57 sq ft
3-8 / 3-8 X 5-6 91 1/2 X 68 1/2  92 X 69 38 5/8 X 30 1/8 39 5/8 X 31 1/8 40 3/4 X 28 3/4 8.136 sq ft
3-8 / 3-8 X 5-10 91 1/2 X 72 1/2 92 X 73 38 5/8 X 32 1/8 39 5/8 X 33 1/8 40 3/4 X 30 3/4 8.702 sq ft

Brochure

300C DH

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Warranty

Best of Class Warranty

  • Glass Breakage Coverage
  • Lifetime Insulating Glass
  • Lifetime Vinyl Extrusions
  • Lifetime Mechanical Parts

Our Windows are made in the Northeast for the Northeast backed by 4 generations of our family – serving you since 1946.

MADE IN AMERICA

Warranty
girl
Rolling WIndow
Picture WIndow
Classic Style

Standard Exterior Colors

Terrastone
Terrastone
Fieldstone
Fieldstone
Black
Black
Bronze
Bronze
Autumn Red
Autumn Red
Hunter Green
Hunter Green

Have a color in mind? We can custom match it!

*All representations of colors are mechanically reproduced and may vary from the actual product. Terms and conditions apply.

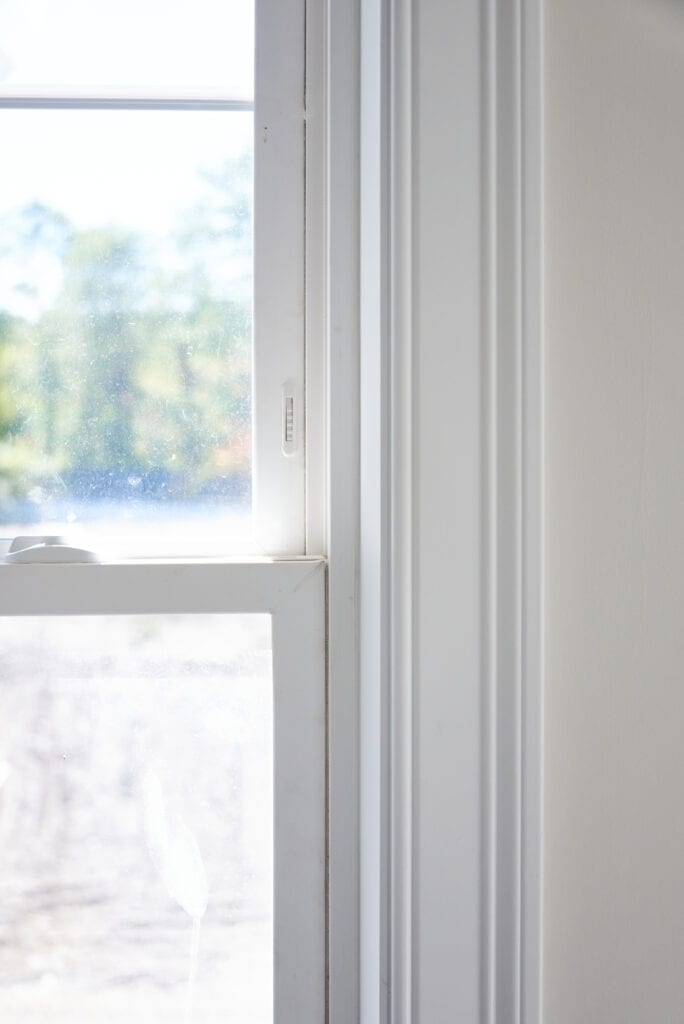

300C Double Hung
300C Double Hung
most popular
300C Rolling
300C Rolling
Precision-Calibrated Rollers
300C Picture
300C Picture
Maximum Viewing Area
Whether you are a builder, architect or home owner, MasterView new construction windows will offer you a lifetime of worry-free operation, backed by one of the best warranties in the industry.
AAMA Logo
NFRC Certified

* Rating, qualification, or compliancy is dependent on selected options and window style.

logo
